- Compact and versatile keyboard amplifier with 200 watts of power
- Redesigned power amp and universal power supply provide increased stability, improved bass reproduction, and reduced weight
- Custom two-way speaker system with newly developed 15-inch woofer and horn tweeter
- Onboard mixer with four stereo input channels, stereo auxiliary input, and master EQ with Shape switch
- Output Select function on Channel 4 for monitoring click and guide tracks
- XLR mic input, XLR and ¼-inch line outputs, headphones output, and sub output
- Chain another KC-600 with the Stereo Link function for more inputs and true stereo sound on stage
- Metal jacks for increased durability
- Removable casters included
-
Full-Range Sound for Keyboards and Electronic Musical Instruments
The KC-600 offers powerful, punchy sound and full-range audio reproduction in a compact amp with 200 watts of power. The cabinet features Roland’s patented twin bass-reflex design, providing extended low-frequency response without distortion. Paired with the newly redesigned power section, the KC-600 delivers even better bass performance for amplifying 88-note stage pianos, organs, and synthesizers, plus rhythm machines and other electronic instruments. An added benefit of the efficient new power section is reduced weight, making the KC-600 easier to carry from gig to gig.
-
Onboard Stereo Mixing
Via the KC-600’s four line input channels, you can connect keyboards, percussion pads, drum machines, and more. There’s also a dedicated auxiliary input to plug in a smartphone or music player for backing tracks. The line and aux inputs support stereo connections, allowing you to send stereo sound to a PA or recording device, and also amplify in stereo when connecting a second KC-600 through Stereo Link. Channel 1 includes an XLR input too, letting you plug in a vocal mic for even more versatility. And with the convenient Output Select function on Channel 4, there’s lots of flexibility for monitoring click and guide tracks while performing.
-
Versatile Connectivity for Performing, Recording, and Practice
With its easy-access connectivity, the KC-600 integrates into any playing environment. Stereo line outputs are provided on both XLR and 1/4-inch jacks, offering simultaneous connections for interfacing with PA systems, stage monitors, and recording devices. There’s also a Sub Out jack for connecting to a powered subwoofer, with level conveniently tied to the amp’s master volume for one-touch control. The KC-600 has a headphones jack as well, perfect for silent practice sessions and discrete stage monitoring.
-
Expand Your Setup with Stereo Link
If you ever want to expand your inputs or monitor in stereo, the KC-600’s Stereo Link function makes it simple. First off, the number of available inputs doubles when you connect to the two stereo link jacks on a second KC-600. In addition, the left and right signals of connected stereo instruments are split across the two amps, allowing you to bring a studio-like monitoring experience to your stage performance setup.
Specifications:- Rated Power Output: 200 W
- Nominal Input Level (1 kHz):
- CH1 (BALANCED, L/MONO, R): -50-- -20 dBu
- CH2 (L/MONO, R): -20 dBu
- CH3 (L/MONO, R): -20 dBu
- CH4/MONITOR IN (L/MONO, R): -20 dBu
- AUX IN (L, R, STEREO): -10 dBu
- STEREO LINK (IN): 0 dBu
- Nominal Output Level (1 kHz):
- LINE OUT (L/MONO, R): +4 dBu
- LINE OUT (BALANCED L, R): +4 dBu
- STEREO LINK (OUT): 0 dBu
- SUB OUT: +4 dBu
- Speakers:
- 38 cm (15 inches) Woofer x 1
- Horn Tweeter x 1

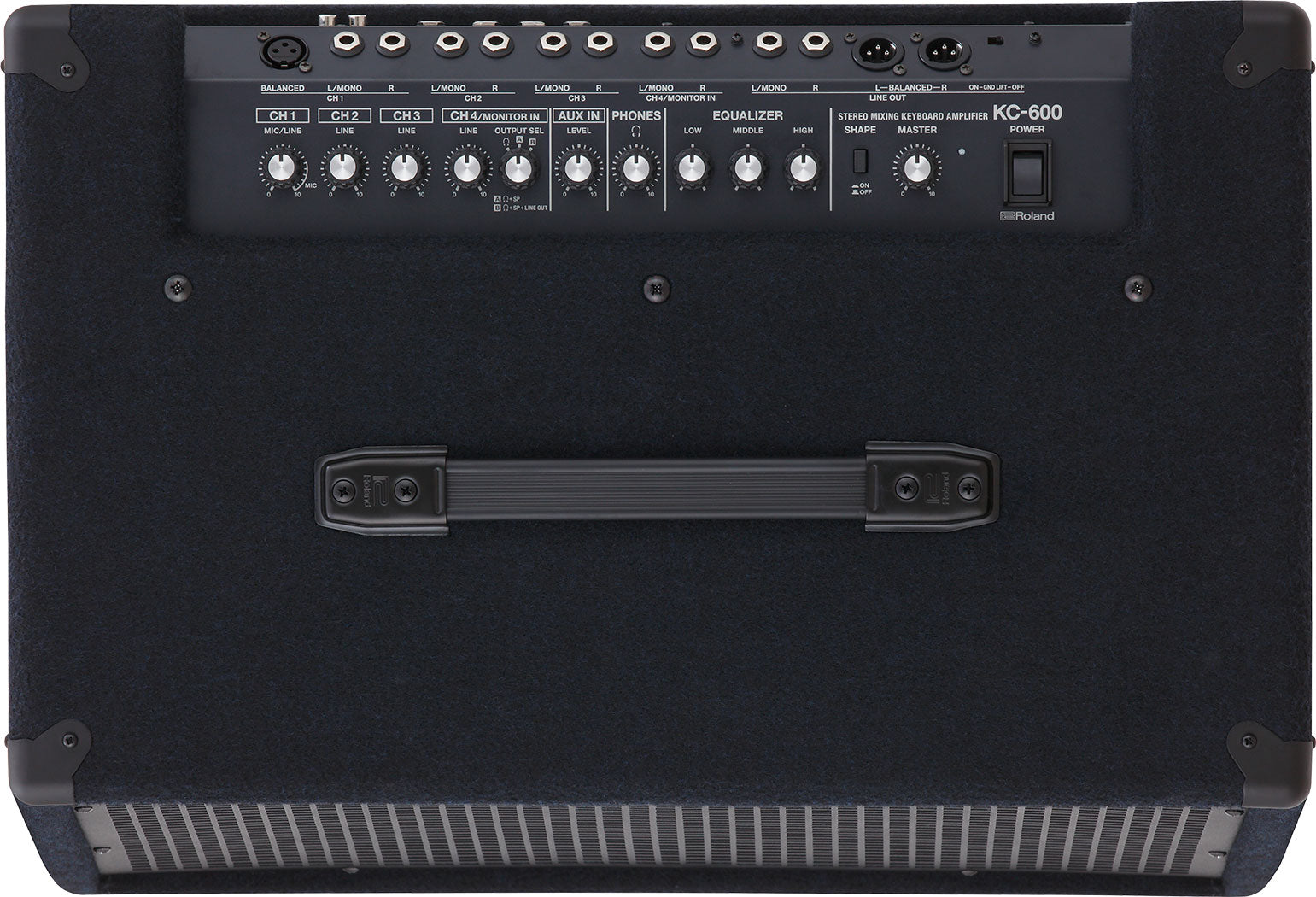

- Controls:
- SHAPE button
- POWER switch
- GND LIFT switch
- [CH1]
- MIC/LINE knob
- [CH2]
- LINE knob
- [CH3]
- LINE knob
- [CH4]
- LINE knob
- OUTPUT SEL knob
- [AUX IN]
- LEVEL knob
- [PHONES]
- VOLUME knob
- [EQUALIZER]
- LOW knob
- MIDDLE knob
- HIGH knob
- MASTER knob
- Indicator: Power
- Connectors:
- CH1 (BALANCED) jack: XLR type
- CH1 (L/MONO, R) jacks: 1/4-inch phone type
- CH2 (L/MONO, R) jacks: 1/4-inch phone type
- CH3 (L/MONO, R) jacks: 1/4-inch phone type
- CH4/MONITOR IN (L/MONO, R) jacks: 1/4-inch phone type
- LINE OUT (L/MONO, R) jacks: 1/4-inch phone type
- LINE OUT (BALANCED L, R) jacks: XLR type
- AUX IN (L, R) jacks: RCA phono type
- AUX IN (STEREO) jacks: Stereo miniature phone type
- SUB OUT jack: 1/4-inch phone type
- STEREO LINK (IN, OUT) jacks: 1/4-inch phone type
- PHONES jack: Stereo 1/4-inch TRS phone type (mono signal output)
- Power Consumption:50 W
- Accessories: Owner's Manual, Caster x 4
- SIZE AND WEIGHT:
- Width: 590 mm (23-1/4 inches)
- Depth: 445 mm (17-9/16 inches)
- Height (including casters): 590 mm (23-1/4 inches)
- Height (excluding casters): 536 mm (21-1/8 inches)
- Weight: 29 kg (63 lbs 15 oz)
